Electrical flexible conduit systems

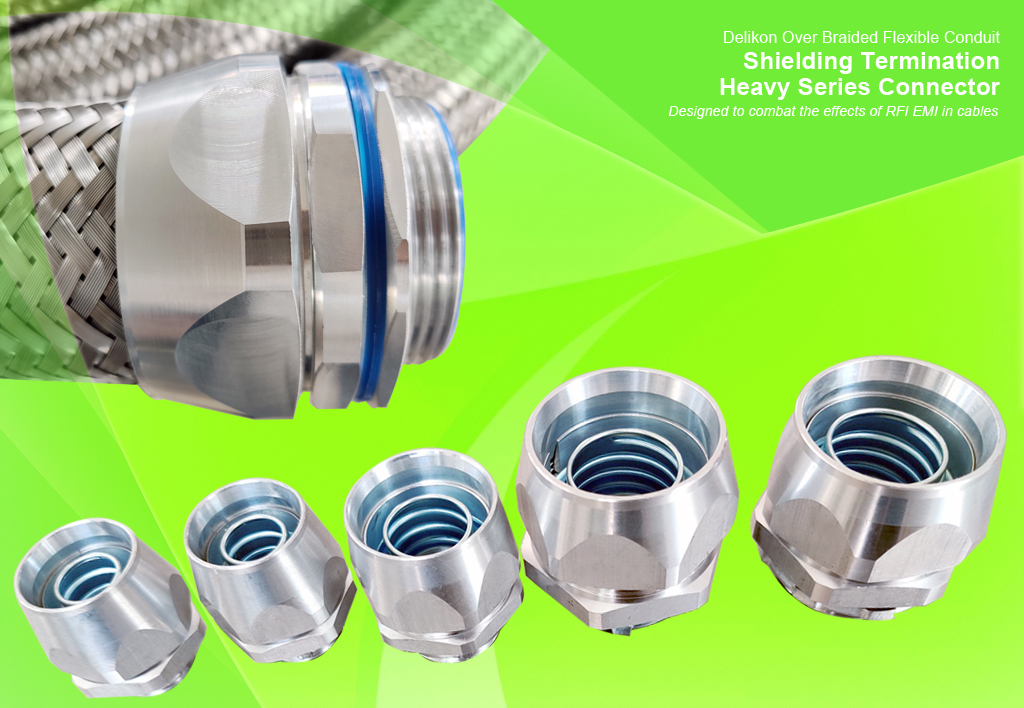

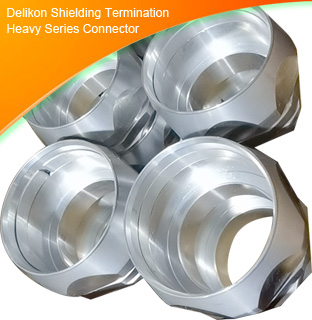

Delikon Shielding Termination Heavy Series Connector and Over Braided Flexible Conduit are designed to combat the effects of RFI EMI in cables
Delikon Shielding Termination Heavy Series Connector and Over Braided Flexible Conduit are designed to combat the effects of RFI EMI in cables
Industrial applications such as the factory floor are typically electrically noisy environments. Electrical noise, either radiated or conducted as electromagnetic interference EMI, can seriously disrupt the proper operation of other equipment. Cables can be a main source of transfer for EMI, both as a source and receiver. As a source, the cable can either conduct noise to other equipment or act as an antenna radiating noise. As a receiver, the cable can pick up EMI radiated from other sources.
Switching heavy loads, inductive heaters, large transformers can all present high levels of both conducted and radiated EMI. Placing signal cables next to power cables can also allow power line noise to couple onto the signal lines.

Delikon Over Braided Flexible Conduit and Heavy Series Connector are designed to combat the effects of RFI EMI in cables. The over braiding of the conduit provides a low resistance path to ground and conducts to ground any of the noise it has picked up. Delikon Heavy Series Connector provides a
shielding termination that provides a low impedance path to ground, ensuring high shielding effectiveness of the system. Delikon Heavy Series Connector makes sure the shields are bonded and grounded to equipment enclosure or electric cabinet. A 360-degree metal split clamp slip around the outer stainless braiding and the clamp is directly in contact with the shield when the connector back shell with a cone shape interior is tightened. The heavy series connector clamps tightly around the braiding and grounds the shielding, which helps to protect the cables against EMI noise.

Delikon Over Braided Flexible Conduit and Heavy Series Connector also protects a cable mechanically from scraps and abrasion and environmentally from dust, moisture and spills.
Delikon Shielding Termination Heavy Series Connector provides a shielding termination that provides a low impedance path to ground, ensuring high shielding effectiveness of the system. Delikon Heavy Series Connector makes sure the shields are bonded and grounded to equipment enclosure or electric cabinet.
Industry 4.0 Automation Cable Protection Solution. Delikon Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protecting PLCs, Computerized Numerical Control CNC machines, or Robots, Human Machine Interface HMI Cable

Over Braided Flexible Conduit Connector, Conduit Fittings for heavy series flexible sheath
( Straight Connector: YABS. 90 Degrees Connectors: YALS. 45 Degrees Connectors: YAHS)

All metal construction, heavy seriesConduit Fittings are most suitable for high temperature wirings.
Or with plastic sealing components for

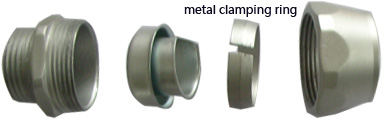

liquid tight applications. Metal clamping ring design provides positive shielding termination.
Most suitable for over braided flexible conduit and flexible metal conduit.
Trade size: 1/4" - 6"
Available with G, ISO228-1, Metric, PF; NPT or PG threads.
Male or Female Threads

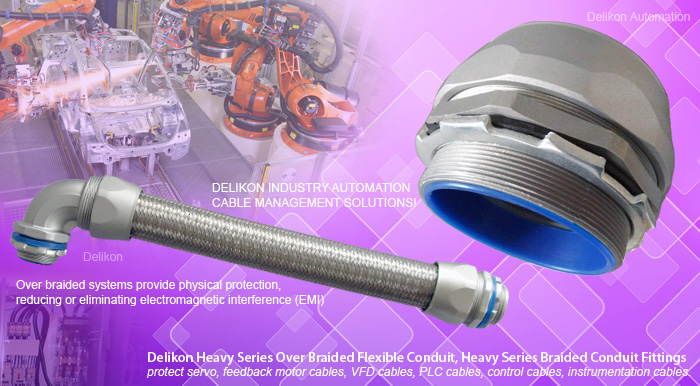

Delikon Heavy Series Over Braided Flexible Conduit, Heavy Series Braided Conduit Fittings protect servo, feedback motor cables, PLC cables, control cables, instrumentation cables. Reducing or eliminating electromagnetic interference (EMI) for cables. Delikon heavy series over braided flexible conduit and connector are particularly recommended for protecting supply cables between frequency converters and servo motors.
Delikon Heavy Series Over Braided Flexible Conduit, Heavy Series Braided Conduit Fittings protect servo, feedback motor cables, PLC cables, control cables, instrumentation cables. Reducing or eliminating electromagnetic interference (EMI) for cables. Delikon heavy series over braided flexible conduit and connector are particularly recommended for protecting supply cables between frequency converters and servo motors.
For the wiring of machines and system controls, Delikon heavy series braided conduit connector provides High Pull-Out Resistance, Robust Performance, Long Life Expectancy, Fastest and Easy installation.

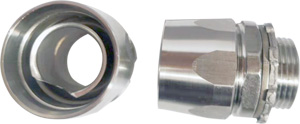

Conduit Connectors with metal clamping ring for high temperature wirings

Braided Conduit Connector with All metal construction.EMI Shielded Connector

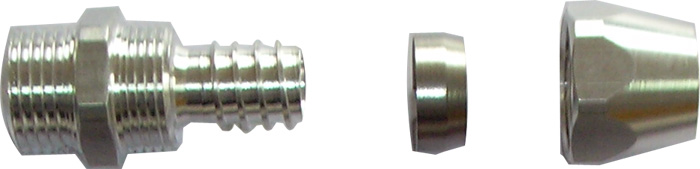

For use with braided flexible conduit systems: Positive clamping of both the inner conduit and braiding
YABS connector for use with braided flexible conduit systems: Positive clamping of both the inner conduit and braiding,EMI Shielding

Straight Heavy Series Flexible Conduit Fittings



Straight Connector (fixed type)

Model Size 0 degree
Heavy Series
Fixed
Model Size

Straight Heavy Series Flexible Conduit Fittings,fixed type: YABS

YABS-02B 1/4" YABS-20B 2"
YABS-03B 3/8" YABS-24B 2-1/2"
YABS-04B 1/2" YABS-30B 3"
YABS-06B 3/4" YABS-40B 4"
YABS-10B 1" YABS-50B 5"
YABS-12B 1-1/4" YABS-60B 6"
YABS-14B 1-1/2"


Straight Connector (swivel type)

Model Size 0 degree
Heavy Series
Swivel
Model Size

Straight Heavy Series Flexible Conduit Fittings,swivel type: YABSR

YABSR-02B 1/4" YABSR-14B 1-1/2"
YABSR-03B 3/8" YABSR-20B 2"
YABSR-04B 1/2" YABSR-24B 2-1/2"
YABSR-06B 3/4" YABSR-30B 3"
YABSR-10B 1" YABSR-40B 4"
YABSR-12B 1-1/4"
The external thread swivels about the main body. It can be used with threaded entries or knockout secured with a locknut. Most suitable for installations requiring motion, vibration and bending. Delikon heavy series Swivel Connector protects data or power cables of electric motor,blower, pump,polishing machine, grinding machine, or any other applications where there is vibration

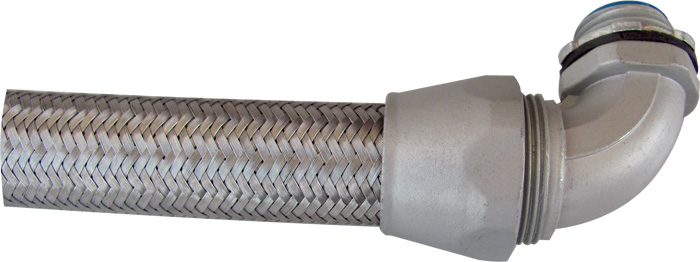

90 Degrees Heavy Series Conduit Fittings For Over Braided Flexible Conduit

90 Degrees Heavy Series Conduit Fittings



90 Degrees Connector (fixed type)

Model Size 90 degrees
Heavy Series
Fixed
Model Size

90 Degrees Heavy Series Conduit Fittings,fixed type: YALS

YALS-03B 3/8" YALS-14B 1-1/2"
YALS-04B 1/2" YALS-20B 2"
YALS-06B 3/4" YALS-24B 2-1/2"
YALS-10B 1" YALS-30B 3"
YALS-12B 1-1/4" YALS-40B 4"

90 Degrees Connector
(swivel type)
Model Size 90 degrees
Heavy Series
Swivel
Model Size

90 Degrees Heavy Series Conduit Fittings,swivel type:YALSR

YALSR-03B 3/8" YALSR-14B 1-1/2"
YALSR-04B 1/2" YALSR-20B 2"
YALSR-06B 3/4" YALSR-24B 2-1/2"
YALSR-10B 1" YALSR-30B 3"
YALSR-12B 1-1/4" YALSR-40B 4"
The external thread swivels about the main body. It can be used with threaded entries or knockout secured with a locknut. Most suitable for installations requiring motion, vibration and bending.


45 Degrees Heavy Series Conduit Fittings Heavy Series Connectors are specially designed for heavy series over braided flexible conduit. These Heavy Series Conduit Fittings provide positive clamping on both the braiding and the inner conduit for heavy duty industry wiring applications.

Heavy Series Flexible Sheath and Connector for steel mills, coke plants and glass manufacturing power and data cable protection

Delikon Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing.

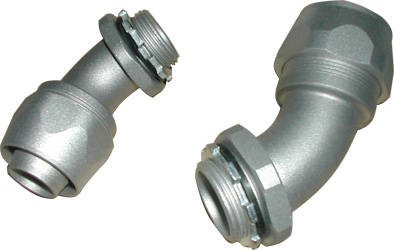

45 Degrees Heavy Series Conduit Fittings



45 Degrees Connector (fixed type)

Model Size 45 degrees
Heavy Series
Fixed
Model Size

45 Degrees Heavy Series Conduit Fittings,fixed type:YAHS

YAHS-02B 1/4" YAHS-14B 1-1/2"
YAHS-03B 3/8" YAHS-20B 2"
YAHS-04B 1/2" YAHS-24B 2-1/2"
YAHS-06B 3/4" YAHS-30B 3"
YAHS-10B 1" YAHS-40B 4"
YAHS-12B 1-1/4"


45 Degrees Connector
(swivel type)

Model Size 45 degrees
Heavy Series
Swivel
Model Size
YAHSR-02B 1/4" YAHSR-14B 1-1/2"
YAHSR-03B 3/8" YAHSR-20B 2"
YAHSR-04B 1/2" YAHSR-24B 2-1/2"
YAHSR-06B 3/4" YAHSR-30B 3"
YAHSR-10B 1" YAHSR-40B 4"
YAHSR-12B 1-1/4"

Connectors for flexible metallic conduit, for braided flexible conduit. All Heavy Series Flexible Conduit Metal Connectors are Available with G, ISO228-1, Metric, PF; NPT or PG threads. Male or Female threads.

Download the catalog page for DELIKON YABS, YALS, YAHS Heavy Series Conduit Connector for braided conduit in PDF File format.Download the catalog page for DELIKON YABS, YALS, YAHS Heavy Series Conduit Connector for braided conduit in PDF File format. Also refer to Heavy Series Over Braided Flexile Conduit for industry cable management.
Delikon flexible conduit

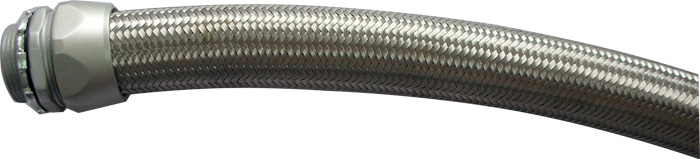

Delikon Heavy Series Over Braided Flexible Conduit and Over Braided Flexible Conduit Fittings are designed for aluminum smelting plant, aluminum processing plant and other metal industry power and control cable protection.









Heavy Series Flexible Conduit Fittings are most suitable for use with Over Braided Flexible Conduit for industrial cable management

DELIKON heavy series Over Braided Flexible Conduit conduit Fittings protect CNC machine cables

Delikon Heavy Series Over Braided Flexible Conduit and Over Braided Flexible Conduit Fittings are designed for aluminum smelting plant, aluminum processing plant and other metal industry power and control cable protection.

YF-705 over braided liquid tight conduit SM-701 over braided interlocked liquid tight conduit YF-704 over braided water proof flexible metal conduit SM-70001 Over Braided Flexible Metal Conduit
YF-705 SM-701 YF-704 SM70001

Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit Over braided small bore flexible metal conduit PBF over braided flexible corrugated polyamide conduit WNS over braided oil resistant flexible rubber conduit
SC AT-SL-BRAIDED PBF WNS/ORC
Over Braided Flexible Steel Conduits for heavy industry       Most suitable For Industry Automation and Control Cables Management
Delikon heavy series over braided flexible conduit and heavy series braided conduit fittings protect electrical and control cables in Aluminum Smelting Plant, Aluminum Foundry, Aluminium Extrusion Plant, Aluminum Finishing Plant. Delikon heavy series over braided flexible conduit systems are also widely used in steel mills or other metal industry.

Overbraided Flexible Metal Conduit and Conduit Fittings For High Temperature Wiring

Delikon heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and molten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection.

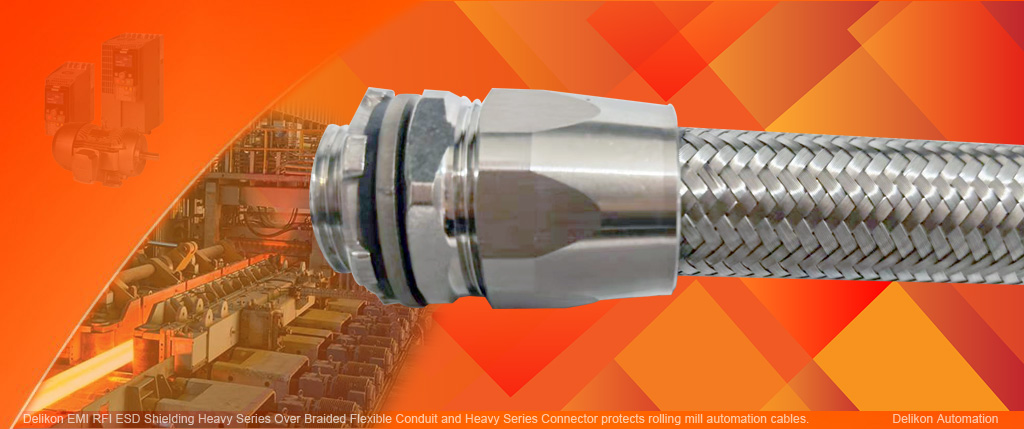

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit System protects metal industry automation drive and control data and signal cables for high noise level locations of heavy processing plants such as steel mills and foundries. Delikon heavy series connector with metal clamping ring design provides positive shielding termination. Industrial applications such as the factory floor are typically electrically noisy environments. Electrical noise, either radiated or conducted as electromagnetic interference (EMI), can seriously disrupt the proper operation of equipments. The primary way to combat EMI in cables is through the use of shielding. Delikon heavy series over braided conduit system is providing additonal mechanical protection as well as EMI shielding to drive and control cables of intelligent industry automation to ensure a frictionless flow of data and material.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit System protects metal industry automation drive and control data and signal cables for high noise level locations of heavy processing plants such as steel mills and foundries. Delikon heavy series connector with metal clamping ring design provides positive shielding termination. Industrial applications such as the factory floor are typically electrically noisy environments. Electrical noise, either radiated or conducted as electromagnetic interference (EMI), can seriously disrupt the proper operation of equipments. The primary way to combat EMI in cables is through the use of shielding. Delikon heavy series over braided conduit system is providing additonal mechanical protection as well as EMI shielding to drive and control cables of intelligent industry automation to ensure a frictionless flow of data and material.

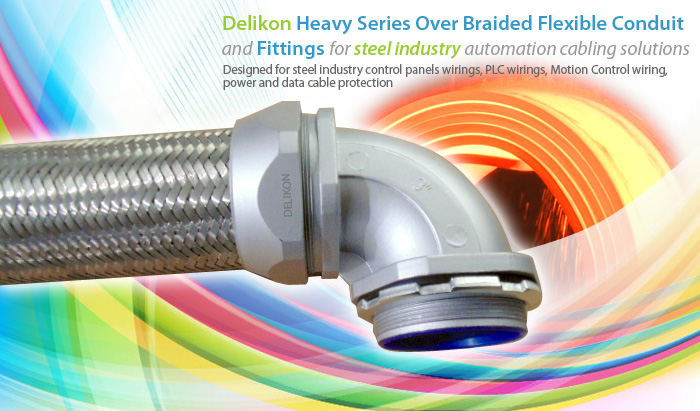

Delikon Heavy Series Over Braided Flexible Conduit,Conduit Connector for steel industry automation cabling solutions
Delikon Heavy Series Over Braided Flexible Conduit and Fittings for steel industry automation cabling solution

Delikon Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for steel industry control panels wirings, PLC wirings, Motion Control wiring, power and data cable protection, both for hot and cold rolling mills and for others specific to the steel industry.

In both control cabinets and system cabling, the key factor in achieving high availability of your electronic and electrical system is secure and fail safe connection of all components. Therefore, you need Delikon as a reliable single-source partner who can deliver high quality electrical flexible conduit and fittings.

Our Heavy Series Over Braided Flexible Conduit and Fittings systems provide you with a future-proof answer to increasingly exacting plant and machinery cable protection requirements. Engineered to meet the needs of all industry sectors especially the steel industry in a virtually limitless range of tasks, the superiority of our over braided flexible conduit systems provides installation efficiency, flexibility, reliability and cost effectiveness - in every application.
Related Products of Flexible Conduits and Fittings for industry cable management

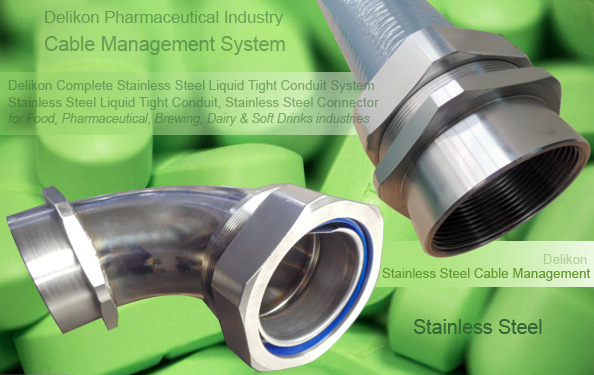

Delikon Pharmaceutical Industry Cable Management System. Delikon Complete Stainless Steel Liquid Tight Conduit, Stainless Steel Liquid Tight Connector System for Food, Pharmaceutical, Brewing, Dairy and Soft Drinks industries. Delikon Pharmaceutical Industry
