Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit


Triple Braided Flexible Conduit
for Combustion Systems and Equipment Cable Management

High Temperature Applications

delikon.com
for combustion equipment power and data cable protection
*Stainless steel strip helically wound with triple layers stainless steel wire over-braid.
*Trade size: 3/8"~4" (Deli-LOK Locking system, with glass fibre cord packing.)
 braided liquidtight conduit
*EMI/RFI shielding *High temperature applications (Suitable for combustion equipment cables)
*High tensile strength
*Resists hot metal splashes *High thermal resistance     braided liquidtight conduit
Delikon Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit system provides extra protection for combustion equipment power and data cable protection:  igniters, flame detectors, Burner Management Systems (BMS), and Combustion Control System (CCS) cables

Delikon Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit system for combustion equipment

Delikon Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit system for combustion equipment cable management
Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit for combustion equipment power and data cable protection: igniters, flame detectors, Burner Management Systems (BMS) sensor and detector cables, dampers, burners and duct burners cables

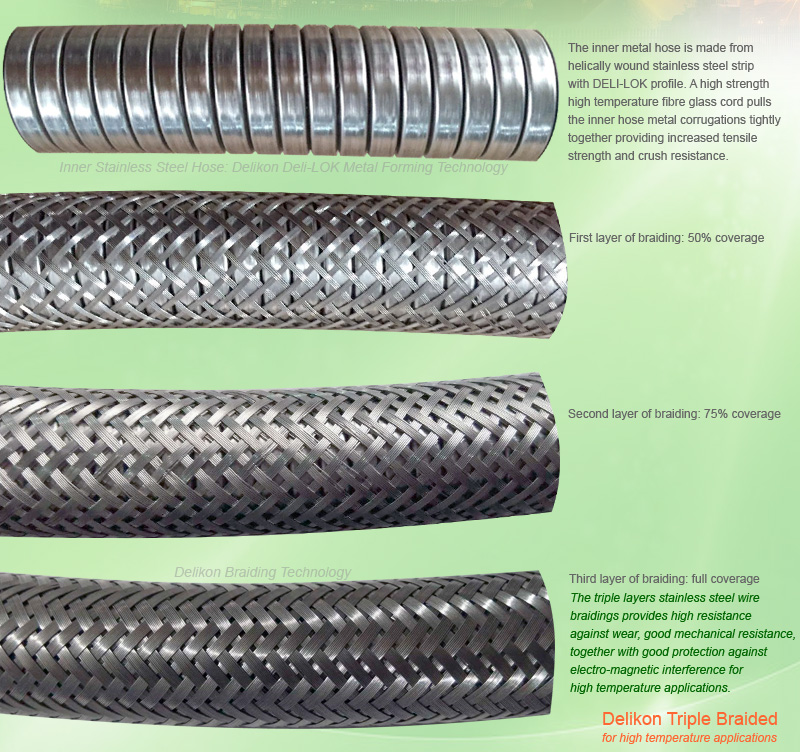

The inner hose is made from helically wound stainless steel strip with DELI-LOK profile. A high strength fibre glass cord pulls the inner hose metal corrugations tightly together. The triple layers stainless steel wire braidings provides high resistance against wear, good mechanical resistance together with good protection against electro-magnetic interference. Resistant to most types of fuels, oils and greases, this Heavy Series Triple Braided Flexible Stainless Steel Conduit is most suitable for high temperature applications where a high level of thermal resistance is required, such as industry burner and combustion equipment cables protection.

Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit is designed for combustion equipment and industry burner electrical cable management. The inner hose is made from helically wound stainless steel strip with DELI-LOK profile. A high strength fibre glass cord pulls the inner hose metal corrugations tightly together. The triple layers stainless steel wire braidings provides high resistance against wear, good mechanical resistance together with good protection against electro-magnetic interference.

Delikon Heavy Series Over Braided Flexible Conduit System for coal plant and cogeneration plant combustion electrical and control cable protection

Delikon has maintained its position as a leader in manufacturing the most innovative lines of flexible conduit sytems for power plant and large industrial systems.

Delikon Triple Braided Stainless Steel Flexible Conduit System is designed for high temperature applications with a high level of thermal resistance, protecting the power and data cables of combustion equipment for Building Materials, Ceramics , Glass, Petrochemical, Refineries, Steelmaking industryies, power plant and more...

Todays advanced industry burner systems minimize emissions and maximize efficiency. Advanced combustion systems require
advanced ratio control through a high degree of precision, repeatability and durability. Delikon heavy series over braided flexible conduitand fittings provide reliable protection of power and data cable for Flow Control Valves, igniters, flame detectors, electrical enclosure and control panels. For safe ignition and control of industrial burners, Delikon heavy series over braided flexible conduit systems also offer protection against electro-magnetic interference of control cables.


Applications:

Combustion Systems & Equipment cable protection. Suitable for high temperature applications.
Protecting igniters, flame detectors, Burner Management Systems (BMS) sensor and detector cables, dampers, burners
and duct burners cables, Flow Control Valves cable, protection of control cables against electro-magnetic interference

Protecting furnaces, kiln, melters, power plant cables



Related Products:

Heavy Series Over Braided Flexible conduit system

      Heavy Series Over Braided Flexible Conduit system for metal industry
Heavy Series Over Braided Flexible Conduit and Conduit Fittings For Mining and Metal Industry Wirings
Heavy Series Over Braided Flexible Conduit and Conduit Connector For Mining and Metal Industry Wirings

Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meters/Coil
Min. Max. Min. Max.
SC-03 3/8" 12.3 12.8 17.3 17.8 40 50
SC-04 1/2" 15.8 16.3 20.7 21.3 45 50
SC-06 3/4" 20.8 21.3 25.7 26.2 50 50
SC-10 1" 26.4 27.1 31.2 31.8 60 50
SC-12 1-1/4" 35.0 35.8 39.7 40.3 70 30
SC-14 1-1/2" 40.1 40.6 46.4 47.0 100 25
SC-20 2" 51.3 51.9 57.8 58.4 120 20
SC-24 2-1/2" 62.9 63.6 69.5 70.2 150 10
SC-30 3" 77.9 78.7 85.6 86.4 180 10
SC-40 4" 101.6 102.6 110.5 111.5 230 10
Delikon Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit system provides protection for combustion equipment power and data cable: igniters, flame detectors, Burner Management Systems(BMS), and Combustion Control System (CCS) cables. This heavy series over braided flexible stainless steel conduit is a reliable protection sheath for flame detector flexible fiber optic assembly
www.delikon.com
Download the catalog page for DELIKON SC Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit Download the catalog page for DELIKON SC Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
delikon.com
Over braided flexible conduit for industry automation cable protectionHeavy Series Over Braided Flexible Conduit
Delikon Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings for Burner Management and Combustion Control System Wiring, Instrumentation, Transmitter, Sensor, Igniter, Flame Detector electric cable conduit
Delikon Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings for Burner Management and Combustion Control System Wiring, Instrumentation, Transmitter, Sensor, Igniter, Flame Detector electric cable conduit
Delikon heavy series over braided flexible conduit systems:
YF-705 SM-701 YF-704 PBF WNS/ORC SM70001 AT-SL-BRAIDED
Over braided liquid tight conduit Over braided interlocked liquid tight conduit Over braided pvc jacketed flexible metal conduit Over braided corrugated polyamide conduit Oil resistant over braided rubber conduit Over Braided Flexible Metal Conduit

Over braided small bore stainless steel conduit

Delikon Heavy Series Over Braided Flexible Conduit and Conduit Fittings for steel industry

Over Braided Interlocked Liquid Tight Conduit and Fittings
Heavy series Over Braided Flexible Conduit & Fittings provide protection for industrial electrical cables against water, oil, grease, solvents, and the outer braiding provides protection against hot metal sparks and slag.
Over Braided Interlocked Liquid Tight Conduit and Braided Conduit Fittings for industry control cable
MS Plug fitting Adapter Connecting Flexible Conduit to Military Connector Servo motor cable protection Heavy Series Over Braided Flexible Conduit with MS Plug Adapter
 Flexible Conduit and Fittings For CNC machineries and PLC wirings
Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable finds wide applications in protecting industrial machines automation cables.
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
  flexible conduit     Also Refer To:
Braided Flexible Metal Conduit
www.delikon.com
Delikon heavy series stainless steel connector is usually chosen for applications with higher operating temperatureDelikon high temperature heavy series stainless steel connector is one piece body, all stainless steel construction for reliable applications where high temperature oxidation resistance is necessary, and in other applications where high temperature strength is required. The all stainless steel heavy duty construction which is wet corrosion resistance is also highly beneficial to Delikon high temperature stainless steel connector strength and resistance to scaling at elevated temperatures.
Delikon high temperature heavy series stainless steel connector is one piece body, all stainless steel construction for reliable applications where high temperature oxidation resistance is necessary, and in other applications where high temperature strength is required.All stainless steel construction: stainless steel body, stainless steel union nut, stainless steel clamping ring, stainless steel ferrule, stainless steel lock nutFor a prolonged service life, Delikon heavy series stainless steel connector is usually chosen for applications with higher operating temperature. Delikon heavy series stainless steel connector and heavy series over braided flexible conduit are used extensively in protecting control or power cables of casting machine, heat exchanger, heaters, boiler, feed water heaters, valves and steam lines sensors and instrumentations.
Heavy Series Over braided flexible conduit and Connector for industry automation cable protection



Over Braided Flexible Steel Conduits for heavy industryFor Industry Automation
Suitable connectors
Stainless steel conduit connector stainless steel connector Heavy Series Stainless Steel Connector Heavy series flexible conduit fittings,heavy series connector Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) swage fittings
Y Y Y Y Y Y Y Y
