Small Bore Stainless Steel Flexible Conduit ( AT )  delikon Flexible stainless steel conduit
Over Braided Flexible Stainless Steel Conduit for optimum cable protection

Small bore Flexible stainless steel conduitFlexible Metal Conduits available in different materials, coverings, and a wide range of sizes

Small bore instrumentation tubing, Flexible metal conduit for optic fibers & control panel wirings

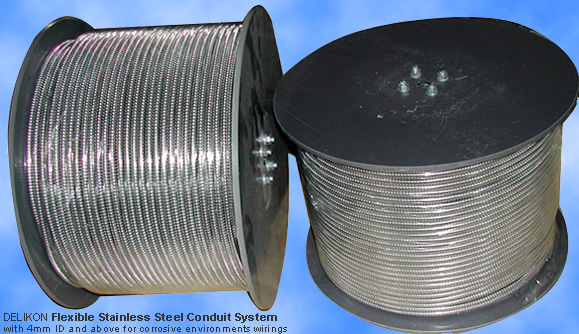

Stainless Steel Flexible Conduit System is particularly suitable for
corrosive environments wirings, and the flexible design means it is ideal for constantly vibrating or flexing applications. The Delikon small bore Stainless Steel Conduit System further enhances the metallic flexible conduit ranges with the benefits of stainless steel. They are most suitable for protecting fibre optics cables.

Small Bore Stainless Steel Flexible Conduit

  • MADE FROM STAINLESS STEEL STRIPS:
    *ALL Stainless steel construction for corrosion resistant.
    *Durable and long life.
    *Designed for tight-spot installation and where continuous flexing is required
  • Applications:
    Suitable for use in  Industrial environments. Protection for stainless tubes, sensor cords or electric cords. It is designed to protect sensitive electronic circuits in applications such as sensors, CCTV circuits, electronic instruments and industrial control wirings.
    Liquid-tight connectors  Liquid-tight connectors
    Aluminum Connectors
      Customly Designed

    Related Products:
     >>> Model YF-703
    galvanized steel
    Square locked type galvanized steel conduit for general applications

    >>> Model YF-707
    water proof flexible metal conduit
    Galvanized steel conduits with PVC jacket for wet locations


    Custom fittings, end caps manufactured as per your samples or drawings:

    Screw type connectors

Pliable S.S. tube
Pliable conduit,hoseMost suitable for conveying machineries coolant.

Braided PTFE Hose for carrying industry or Automobile fluids.
Over braided PTFE hose

Braided Steel Conduit

Over Braided Flexible Steel Conduits

Flexible, sleek, with  IP 67 ratings, Liquid-tight flexible metallic conduit (LFMC) is suitable for use in a variety of industry as well as commercial environments and applications
Liquid-tight flexible metallic conduit

Flexible Galvanized steel conduit with packing for increased strength or more air tightness

>>> Model YF-708
Flexible Metal Conduit with packingFlexible Metal Conduit with sealing cord


Over Braided Flexible Metal Conduit or protection of Offshore and Petrochemical industry wirings.
Petrochemical, Offshore & Heavy industry wiring flexible conduit and fittings
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect floating liquefied natural gas FLNG facility and LNG facility Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and fittings protect FLNG facility and LNG facility automation cables

Flexible Stainless Steel Conduit: Type AT is an ultra-flexible, stainless steel conduit designed primarily for OEM applications. A typical application would be armouring in specialty sensing devices, or medical equipment, including fiber-optics.
SMALL BORE HOSE, Flexible stainless steel conduit for CCTV/roller shutter
Delikon manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel or galvanized steel strip. However, other metals are also available. flexible stainless steel conduit

Applications:
 Offshore and Chemical Plants & Optical Fiber and sensors wirings
Protecting inspection equipment's wirings Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.

Photo on shown on the left:
Small ID flexible metallic conduit used for Flexible Fiber Optic Scope wirings.

Constructions:
Instrumentation tubing is made in two configurations, or constructions, commonlyPacking in Reels For Small ID Conduits called SquareLok and InterLok, and is often abbreviated as SL and FI.

Technical Data / specifications:
SquareLok Style (SL)
SquareLok
Square lockedSquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.

Trade
Size

Inside Diameter

Outside Diameter

Weight

 Breaking Load Min

Part Number

1/8”

3.5mm

0.140”

3.5mm

0.200”

5.1mm

0.017lb/ft

0.026kg/m

60lbs.
27kgs

AT-SL-002

5/32”

4mm

0.156”

4.0mm

0.235”

6.0mm

0.030 lb/ft
0.045 Kg/m

145 lbs.

66 Kg

AT-SL-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.033lb/ft

0.049 Kg/m

150 lbs.

68 Kg

AT-SL-003

7/32”

5.5mm

0.218”

5.6mm

0.303”

7.7mm

0.040 lb/ft

0.059 Kg/m

155 lbs.

70 Kg

AT-SL-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.041 lb/ft

0.061 Kg/m

190 lbs.

86 Kg

AT-SL-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.048 lb/ft

0.072 Kg/m

200 lbs.

91 Kg

AT-SL-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.055 lb/ft

0.082 Kg/m

200 lbs.

91 Kg

AT-SL-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.088 lb/ft

0.131 Kg/m

225 lbs.

102 Kg

AT-SL-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.106 lb/ft

0.157 Kg/m

250 lbs.

113 Kg

AT-SL-008

Packed    PACKING is available for large quantity orders.
Part No.: AT-SL-PACKED- (packing type)

Packing Type Pressure Range  Vacuum Rating Temperature
Cotton    Up to 15 PSI Up to 15" Mercury 300 F
Stainless/Copper Wire    Up to 15 PSI Up to 15" Mercury 1500 F
Elastomeric    Up to 20 PSI Up to 20" Mercury 180 F



Fully InterLok Style (FI)
Fully InterLok
Interlocked

InterLok metal strip and the edges of the strip are completely interlocked with each other.  This offers increased crush protection, and higher axial strength.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

5/32”

4mm

0.174”

4.4mm

0.252”

6.4mm

0.037 lb/ft
0.055 Kg/m

180 lbs.

78 Kg

AT-FI-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.041 lb/ft

0.060 Kg/m

190 lbs.

86 Kg

AT-FI-003

7/32”

5.5mm

0.218”

5.5mm

0.303”

7.7mm

0.045 lb/ft

0.067 Kg/m

200 lbs.

91 Kg

AT-FI-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.046 lb/ft

0.068 Kg/m

250 lbs.

113 Kg

AT-FI-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.054 lb/ft

0.081 Kg/m

260 lbs.

118 Kg

AT-FI-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.062 lb/ft

0.092 Kg/m

260 lbs.

118 Kg

AT-FI-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.099 lb/ft

0.147 Kg/m

292 lbs.

132 Kg

AT-FI-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.119 lb/ft

0.176 Kg/m

325 lbs.

146 Kg

AT-FI-008

* Maximum size we could produce= 6"(about 150mm). For bigger sizes or custom sizes order, please send us your detailed requirement.



OD tolerance is +/- 0.015 inches    ID tolerance is +/- 0.020 inches

delikon.com

Delikon Stainless Steel Liquid Tight Conduit and Stainless Steel Connector
Stainless Steel Liquid Tight Conduit and Stainless Steel Connector

Download the catalog page for DELIKON AT-Braided Series Over Braided Small Bore Stainless Steel Flexible Conduit
Download the catalog page for Delikon
AT-Braided Series Over Braided Small Bore Stainless Steel Flexible Conduit in PDF File format.


Flexible Conduits & Accessories For Vehicle Wiring Harness
Stainless Flexible Protection conduits with PVC Sheathing Or Metal Wire Braiding
for use in hazardous Locations
, industrial environments and Vehicle wiring harness.

For Large Quantity Order, it is possible to Vacuum-Jacket or Extrude a PVC covering onto the
above AT-SL (SquareLok Type) conduits for water proof applications.  Please also refer to: Flexible Metal Conduit Systems
Delikon PVC Coated Flexible Stainless Steel Conduit for oil and gas industry automation cable protection.Delikon PVC Coated Flexible Stainless Steel Conduit is the best choice for protecting oil and gas industry automation cables. Explosive substances, aggressive media and moisture makes numerous processes in the chemical industry extremely risky.Delikon PVC Coated Flexible Stainless Steel Conduit also offers Cable Safety Solutions for the automotive industry.
Delikon PVC Coated Flexible Stainless Steel Conduit for oil and gas industry automation cable protection
The oil and gas industry is an aggressive environment for electrical cables. Thanks to its strength and corrosion resistance, Delikon PVC Coated Flexible Stainless Steel Conduit is the best choice for protecting oil and gas industry automation cables. Explosive substances, aggressive media and moisture makes numerous processes in the chemical industry extremely risky. Delikon Flexible Conduit and Connector For Offshore, Marine, Petrochemical and Heavy Industry Electrical Wirings. Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production. And Delikon High Temperature Heavy Series Over Braided Flexible Conduit systems are used extensively in REFINERIES and PETROCHEMICAL plants around the globeDelikon PVC Coated Flexible Stainless Steel Conduit system not only helps you reduce down time due to cable failures and make processes more productive, but also supports you in your goal of ensuring that people and the environment remain safe.
Delikon PVC Coated Flexible Stainless Steel Conduit also offers Cable Safety Solutions for the automotive industry. Delikon PVC Coated Flexible Stainless Steel Conduit is especially used in high performance premium vehicles wiring harness.
Delikon steel mill and oil amd gas industry automation VFD cable shielding emi shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector
Delikon tailor made Waterproof Stainless Steel Flexible Conduit for vehicle and farm automation wiring harnessDelikon tailor made Waterproof Stainless Steel Flexible Conduit for vehicle and farm automation wiring harness. Delikon Waterproof Stainless Steel Flexible Conduit system protects cable wiring harness of EV, HEV, NEV and Agriculture and Farming Equipment in corrosive and damp environments.
The changes in vehicle electronics announced by the automotive industry will also result in massive changes in cabling: Introduction of a more centralized computer architecture with powerful domain computers; increased use of sensors with correspondingly higher data volumes within the vehicle and between the vehicle and the outside world, as well as the electrification of the drive train. All these factors significantly increase the amount of cabling in cars. Delikon
Waterproof Stainless Steel Flexible Conduit system protects cable wiring harness of EV, HEV, NEV and Agriculture and Farming Equipment in corrosive and damp environments.
Over Braided Flexible Steel Conduits

Corrugated surfaceVacuum jacketed



Delikon stainless steel flexible conduit with thicker coatingDelikon stainless steel flexible conduit with thicker extruded PVC coating
TYPE: AT-SL-JACKETED
The PVC covering is applied onto the metal surface with a Vacuum process. The finished surface will have a spiral corrugated pattern. It is most suitable for tight-spot installation and where a certain water tightness is required flexible stainless steel conduit
  METALLIC LIQUID-TUFF CONDUITSTYPE: AT-SL-EXTRUDED
The PVC covering is extruded onto the metal surface,
thus producing a thicker coating finished surface. when used with liquid-tight fittings it offers a higher degree of liquid tightness than the vacuum jacketed type.
Insterted into a plastic SLEEVEMetal conduit insterted into a plastic sleeving   Metal wire over-braidedOver Braided Stainless Steel Flexible Conduitsmall bore Over Braided Stainless Steel Flexible Conduit for industry cable protection
TYPE: AT-SL-SLEEVED
A short length of the AT-SL tubing is directly inserted into a thermoplastic sleeve. A very smooth outer surface and a very uniform thickness of sleeving is ensured. For cut to length OEM orders.
  TYPE: AT-SL-BRAIDED     EMI/RFI Shielding Flexible Conduits
High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible metal tubing for optimum protection. Over Braided Flexible Stainless Steel Conduit provides increased abrasion & corrosion resistant, improved EMI screening, and resists hot metal splashes.

Flexible Conduit System For Complete CCTV Cable Protection SolutionsDelikon Flexible Conduit System For Complete CCTV Cable Protection Solutions
DELIKON's whole range of flexible conduit systems provides dedicated protection to vulnerable CCTV systems, not only from the elements, but also from the threat of vandalism. The wide range of DELIKON metallic and non-metallic flexible conduit systems is specifically designed to provide ingress protection to the vulnerable umbilical cabling used on CCTV cameras and networks. The flexible systems are ideal for both static and rotating cameras.   For Industry Automation

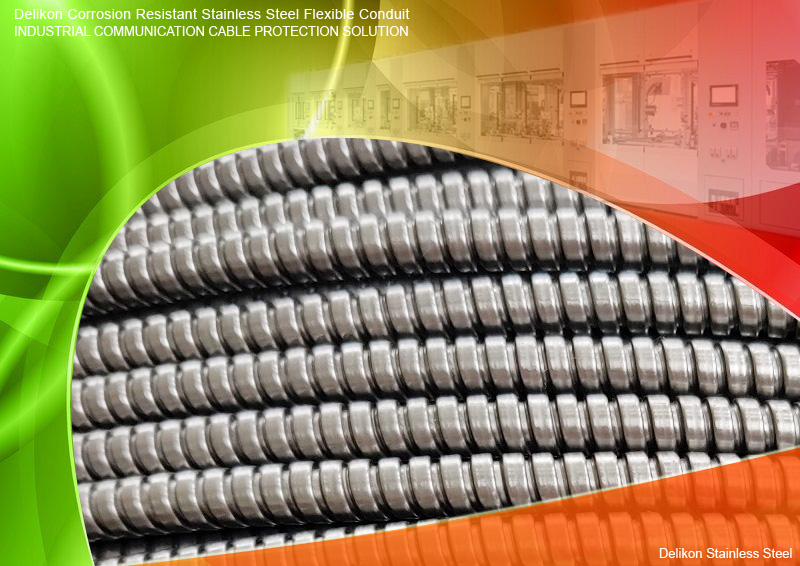

Delikon Corrosion Resistant Stainless Steel Flexible Conduit for INDUSTRIAL COMMUNICATION CABLE PROTECTION,The reliable wiring solutions for factory, machine, and plant automation.Delikon provide the highest quality flexible stainless steel conduit system to maintain machine up time and avoid costly downtime.
Delikon Corrosion Resistant Stainless Steel Flexible Conduit for INDUSTRIAL COMMUNICATION CABLE PROTECTION
The reliable wiring solutions for factory, machine, and plant automation.
Industrial communication essentially it is your key to future competitiveness. The future of manufacturing is 5G, Wifi, Industrial Ethernet, and IIoT. With our industrial suited, robust high quality corrosion resistant Stainless Steel Flexible Conduit for the
InterLocked Flexible Stainless Steel Liquid Tight Conduit, liquid tight smooth pvc coated stainless steel flexible conduitcable protection of intelligent control of PLC, sensors and actuators, we support you in transforming your factory into a Smart Factory.
Delikon provides industrial communication cable shielding flexible conduit. From the sensor, actuator and control level to the CNC machining center, we work together with you to realize entire network cabling flexible sheath solutions for the reliable transmission of the highest data volumes. We provide the highest quality flexible stainless steel conduit system to maintain machine up time and avoid costly downtime. Therefore, our connection stainless steel flexible conduit solutions are ideally suited for demanding conditions and offer maximum reliability under chemical, mechanical, and thermal stress.
Delikon Agriculture farming equipment wiring harness waterproof Corrosion Resistant PVC Covered Stainless Steel Flexible Conduit. Made from stainless steel for maximum corrosion resistance and durability, Delikon PVC coated flexible stainless steel conduit is ideal for Agriculture farming equipment wiring harness. Delikon Jacketed Flexible Stainless Steel Conduit and Stainless Steel Connector are used for Wiring Harness of Electric and Hybrid Electric Vehicles, agriculture equipment, automation and autonomy wiring harness for agriculture.
Delikon EV and farming equipment wiring harness Waterproof Corrosion Resistant PVC Covered Stainless Steel Conduit
Made from stainless steel for maximum corrosion resistance and durability, Delikon PVC coated flexible stainless steel conduit is ideal for Agriculture farming equipment and EV wiring harness. Delikon Jacketed Flexible Stainless Steel Conduit and Stainless Steel Connector are used for
Delikon Flexible Conduit and Fittings for Automotive Wiring Harness and Heavy Duty Vehicle Wiring LoomWiring Harness of Electric and Hybrid Electric Vehicles, agriculture equipment, automation and autonomy wiring harness for agriculture.                   Delikon Flexible Conduit and Fittings for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom
Delikon EMI shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector for steel mill, oil and gas industry, Refineries and Petrochemical industry, mining industry, automotive industry automation cable protectionHeavy Series Over braided flexible conduit and Connector for industry automation cable protection
Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and productionDelikon Flexible Conduit and Fittings For Offshore, Petrochemical and Heavy Industry Electrical Wirings. Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production. And Delikon High Temperature Heavy Series Over Braided Flexible Conduit systems are used extensively in REFINERIES and PETROCHEMICAL plants around the globe
Delikon Kiln, oven, boiler, furnace automation cable protection High Temperature Interference Shielding Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector,heavy series flexbile sheath
Delikon Kiln, oven, boiler, furnace automation cable protection High Temperature Interference Shielding Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector
Delikon emi rfi shield termination heavy series high temperature connector for heavy series over braided conduitDelikon is the leading supplier of High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for protection of electrics and automation cables for the metal industry. Delikon EMI Shielding and Environmental High Temperature Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings are often used in industry automation system applications because they provide protection from power and radio frequency interference.Delikon High Temperature Stainless Steel ConnectorSteel plants, especially rolling mills as well as processing lines, depend mainly on uninterruptible processes and on the quality of the steel rolled. As a result, cable protection technology plays an essential role. Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector constructed entirely of metals, are ideally suited for foundries, glass manufacturing, steel mills and other high temperature processes, providing a cable flexible conduit system for longer life and reduced down time . Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector offer mechanical impact and crushing protection as well as protection against hot sparks and slag
In addition to the benefit of protection against damage to cable components from cable motion and use,
proper shielding provided by Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector is essential to many applications as it can keep out unwanted external interference.

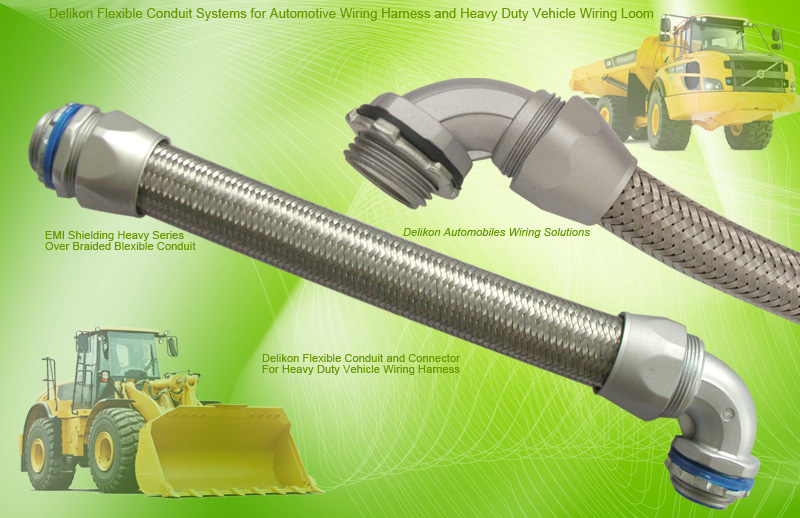

Delikon Flexible Conduit Systems for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom. Delikon offers a wide variety of flexible conduit and fittings to help you with your Automotive Wiring Harness project, like coated flexible metal conduit, liquid tight conduit, flexible stainless steel conduit, EMI Shielding heavy series over braided flexible conduit, liquid tight connector, and heavy series conduit fittings.
